Product Details & Geometry

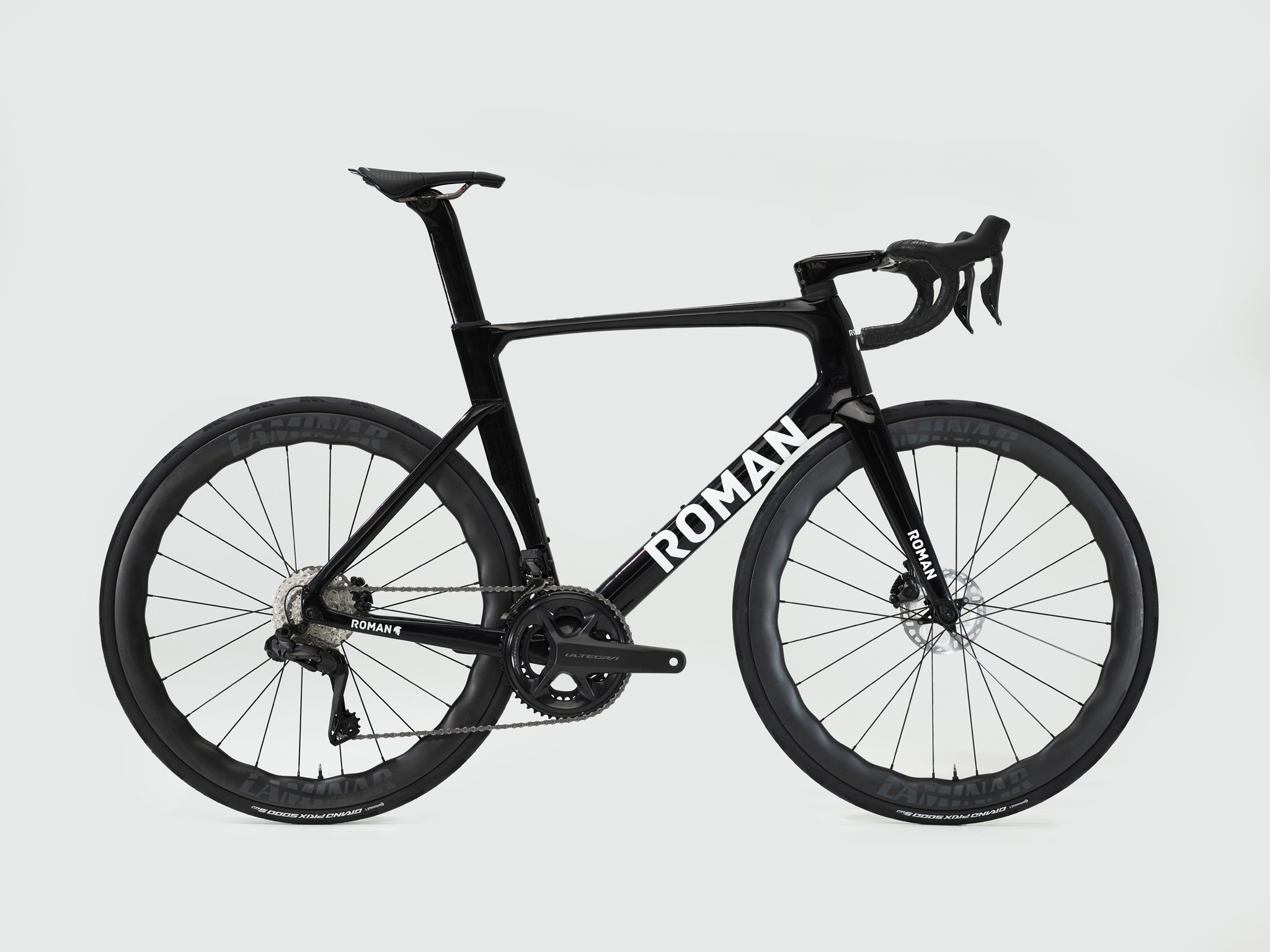

AERO R XXV
|
Frameset: |
AERO R XXV Includes: Carbon Aero forks colour coded. One piece colour coded bar/stem. Carbon seatpost colour coded. Internal seat clamp. Removable front derailleur hanger. Full internal routing. A maximum tested tyre clearance of 700x32c. Pressfit BB86 bottom bracket shell. Approx frame weight @1.1kg in size Medium |
|
Colours: |
Tarmac black |
|
Groupset: |
Ultegra Di2 2x12spd/Dura-Ace Di2 2x12spd |
|
Wheels: |
Laminar 450 Carbon |
|
Tyres: |
Vittoria Corsa Pro Tan 30mm |
|
Bar Tape: |
Profile Black |
|
Saddle: |
Pro Stealth 142 Carbon Rail |
| Size | A | B | C | D | E | F | G | H | I | J | K | RCH | STK |
| 430 | 430 | 520 | 105 | 406 | 71 | 74 | 65 | 577 | 370 | 974 | 45 | 376 | 500 |
| 460 | 460 | 535 | 115 | 406 | 72.5 | 74 | 65 | 580 | 370 | 977 | 45 | 388 | 514 |
| 500 | 500 | 553 | 145 | 406 | 73 | 74 | 65 | 594 | 370 | 991 | 45 | 397 | 544 |
| 540 | 540 | 569 | 165 | 406 | 73 | 74 | 65 | 610 | 370 | 1007 | 45 | 407 | 564 |
| 570 | 570 | 585 | 180 | 406 | 73 | 74 | 65 | 627 | 370 | 1024 | 45 | 420 | 578 |
